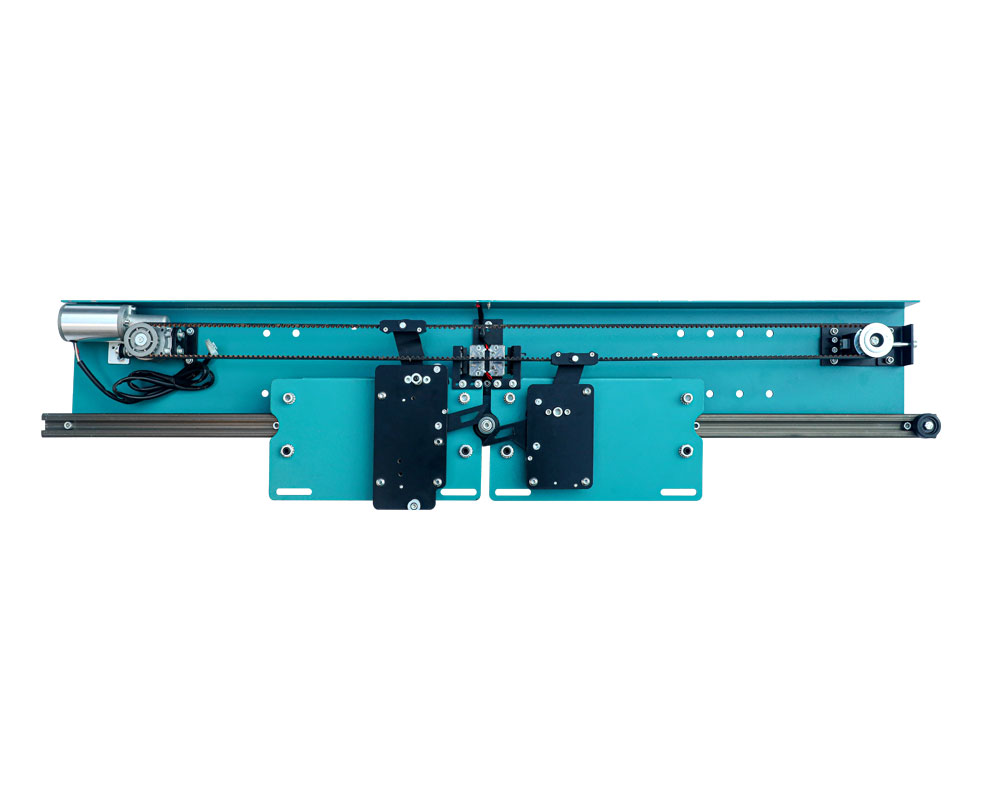

CO 2P Car Header

CO 2P Car Header

  • Low weght & reduced ocerall dimensions.
  • Wire Rope less Car header for silent operation.
  • Wider Belt size strengthens the operating torque.
  • Hard Anodized Aluminum Track for Silent Operation.
  • Auto learning facility for variable door weight.
  • Speed control for coupler- skate gives noiseless opening/closing.
  • Dedicated VVVF allows flexibility of parameter programmability to cater user choice.
  • Monitors door weight continuously while in operation.
  • Wide input power supply range makes trouble free operation in power fluctuation.
  • Long life door contacts.
  • Adjustable idle pulley with spring tension.
  • Bottom Groove less sill design to prevents dirt entry & gives attractive bottom look.
  • Built in Track Cleaners & Roller Cleaners for Longer Time Noiseless Operation.
  • Easy installation & fast debugging.
  • Field configurable for Interfacing with different types of main controller.





Sr. No. Type Available for Opening (MM) Max. Operator Width (MM)
1. 2-Panel Center Opening 650,700,750,800,850,900,1000,1100,1200,1300,1400 ( 2 x Clear Opening ) +100
2. 2-Panel Center Opening (Right/Left) 650,700,750,800,850,900,1000,1100,1200,1300,1400 ( 1.5 x Clear Opening ) +100
3. 2-Panel Center Opening 800,850,900,1000,1100,1200,1300,1400 ,1600,1800 ( 1.5 x Clear Opening ) +50
